Overview

UnifyCR is a user level file system currently under active development. An application can use node-local storage as burst buffers for shared files. UnifyCR is designed to support both checkpoint/restart which is the most important I/O workload for HPC and other common I/O workloads as well. With UnifyCR, applications can write to fast, scalable, node-local burst buffers as easily as they do the parallel file system. This section will provide a high level design of UnifyCR. It will describe the UnifyCR library and the UnifyCR daemon.

High Level Design

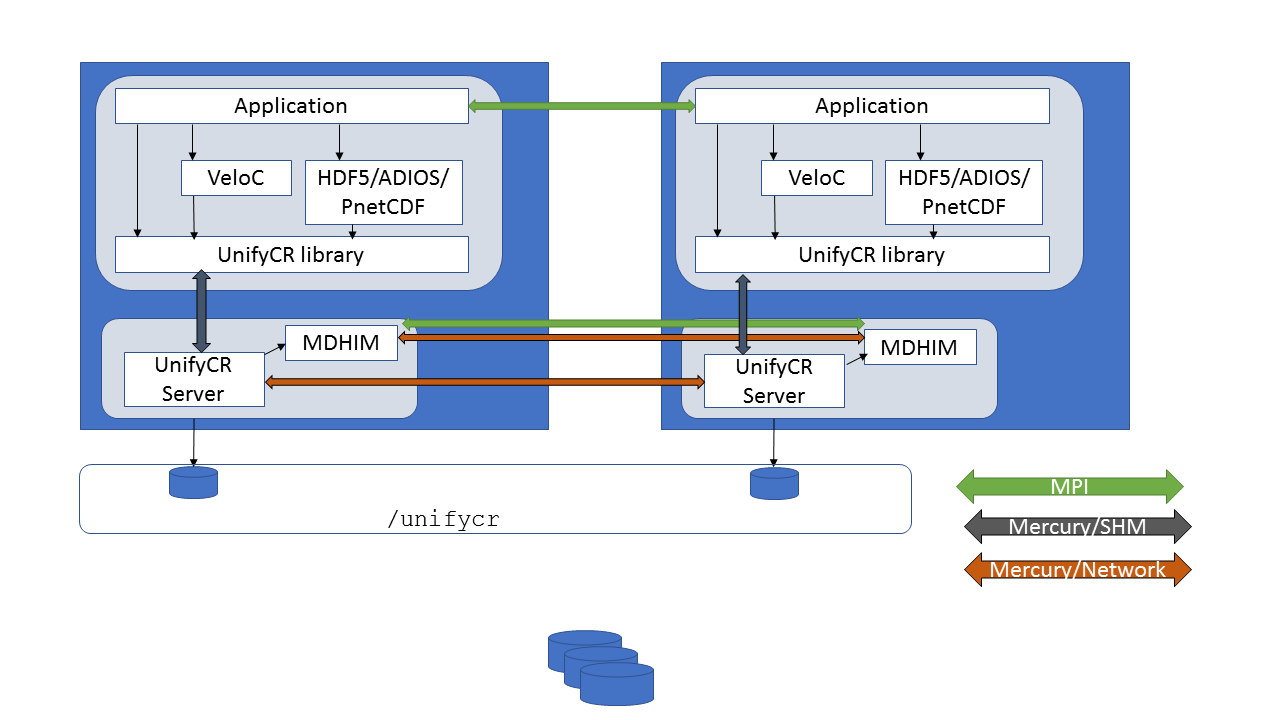

_images/design-high-lvl.png

UnifyCR will present a shared namespace (e.g., /unifycr as a mount point) to all compute nodes in a users job allocation. There are two main components of UnifyCR: the UnifyCR library and the UnifyCR daemon. The UnifyCR library (also referred to as the UnifyCR client library) is linked into the user application and is responsible for intercepting I/O calls from the user application and then sending the I/O requests on to a UnifyCR server to be handled. The UnifyCR client library uses the ECP GOTCHA software as its primary mechanism for intercepting I/O calls. Each UnifyCR daemon (also referred to as a UnifyCR server daemon) runs as a daemon on a compute node in the users allocation. The UnifyCR server is responsible for handling the I/O requests from the UnifyCR library. On each compute node, there will be user application processes running as well as tool daemon processes. The user application is linked with the UnifyCR client library and a high-level I/O library, e.g. HDF5, ADIOS, or PnetCDF. The UnifyCR server daemon also runs on the compute node and is linked with the MDHIM library which is used for metadata services.
